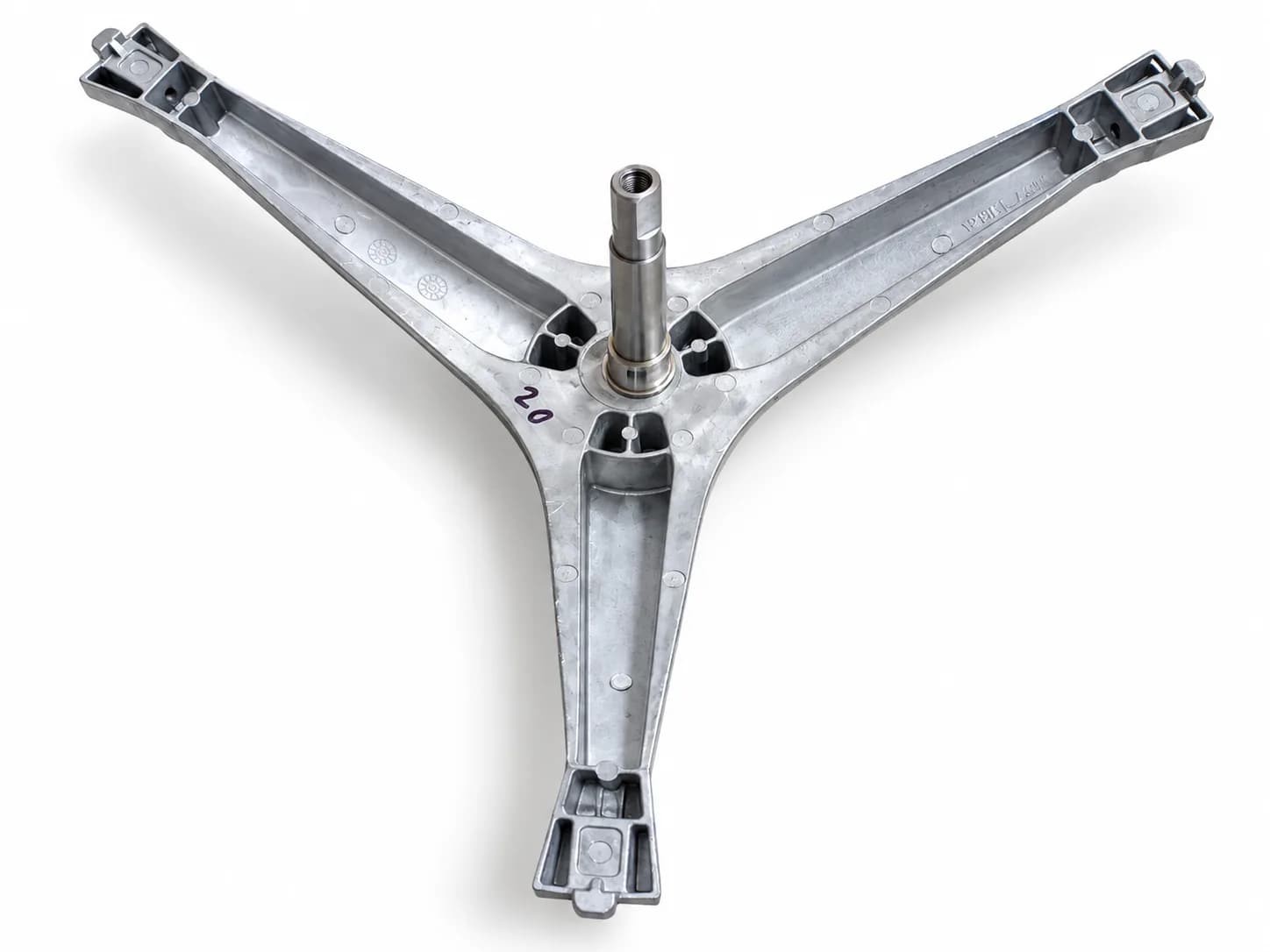

Front Load Washing Machine Spider Suitable For Samsung 5.5 KG Washing Machine Drum Spider Arm (Bearing 6203 / 6204) – Heavy Duty ( Match And Buy ) 2 Year Warranty

Here is a step-by-step installation guide for replacing the drum spider arm on a Samsung (5.5 KG / 6.5 KG) front-load washing machine. Safety & Preparation FirstUnplug the Machine: Disconnect the washing machine from the wall power outlet completely.Turn Off Water & Drain: Close the water tap, disconnect the inlet hoses, and drain any remaining water from the drum and bottom drain filter.Tools Needed: Socket wrench set (usually 10mm, 12mm, 13mm, 17mm/19mm), Phillips head and flathead screwdrivers, rubber mallet/hammer, threadlocker/sealant, replacement oil seal & bearings (recommended: 6203 / 6204 for 5.5 kg models or 6204 / 6205 for 6.5 kg models), and work gloves. Step-by-Step Installation GuideStep 1: Disassemble Cabinet & Access Outer TubTop & Back Panels: Remove the rear screws on the top cover, slide it back, and lift off. Remove the rear metal access panel.Control Panel & Front Door:Pull out the detergent drawer and remove the hidden screws behind it.Disconnect the electronic control board connectors and unclip the front control panel.Remove the wire retaining ring around the door rubber gasket (bellows) and detach the gasket from the front frame.Disconnect the door lock switch harness and unscrew the front cabinet cover.Step 2: Disconnect Tub Accessories & Extract Tub AssemblyDrive Assembly: Slip the belt off the motor and rear drum pulley. Remove the center pulley bolt to pull off the pulley.Electrical Connections: Disconnect the motor wiring harness, heating element terminals, temperature sensor, and drain pump hoses.Counterweights & Springs: Remove the heavy concrete balance weights mounted around the tub.Remove Tub: Unhook the bottom shock absorbers and carefully lift the entire tub assembly off its top suspension springs.Step 3: Split the Tub & Remove Old SpiderSplit Outer Tub: Remove all surrounding tub bolts/screws joining the front and rear outer tub halves together.Separate Inner Drum: Pull the front tub half off, then carefully tap the center shaft from the back using a rubber mallet to free the stainless steel inner drum from the rear tub housing.Unbolt Damaged Spider: Unscrew the 3 mounting bolts securing the damaged spider arm to the back of the stainless steel inner drum. Step 4: Mount the New Technovate Spider ArmClean Drum Base: Scrape off all scale, lint, mineral deposits, and detergent buildup from the mounting surface of the stainless steel inner drum. Mount New Spider: Position your new Samsung Spider Arm against the drum's mounting holes. Fasten Screws: Insert and tighten all 3 mounting bolts evenly in a cross-pattern to ensure proper alignment and prevent wobbling. Step 5: Reassemble & Test(Recommended) Install a new tub oil seal and bearing set (6203 / 6204 or 6204 / 6205 depending on your model capacity) into the rear tub casing before pushing the shaft through. Slide the shaft through the rear tub bearings until fully seated. Rejoin the outer tub halves with the tub gasket, tighten all perimeter screws, and place the tub back onto the suspension springs and shock absorbers.Reinstall the pulley, drive belt, wiring connections, concrete weights, front door panel, and top cover.Run Test Cycle: Perform a short Spin Only cycle without clothes to ensure balanced drum rotation, quiet operation, and zero water leakage. Tip: Replacing a drum spider arm requires a full teardown of the washing machine. If you are not confident doing this yourself, we advise hiring a trained technician for a smooth installation.
