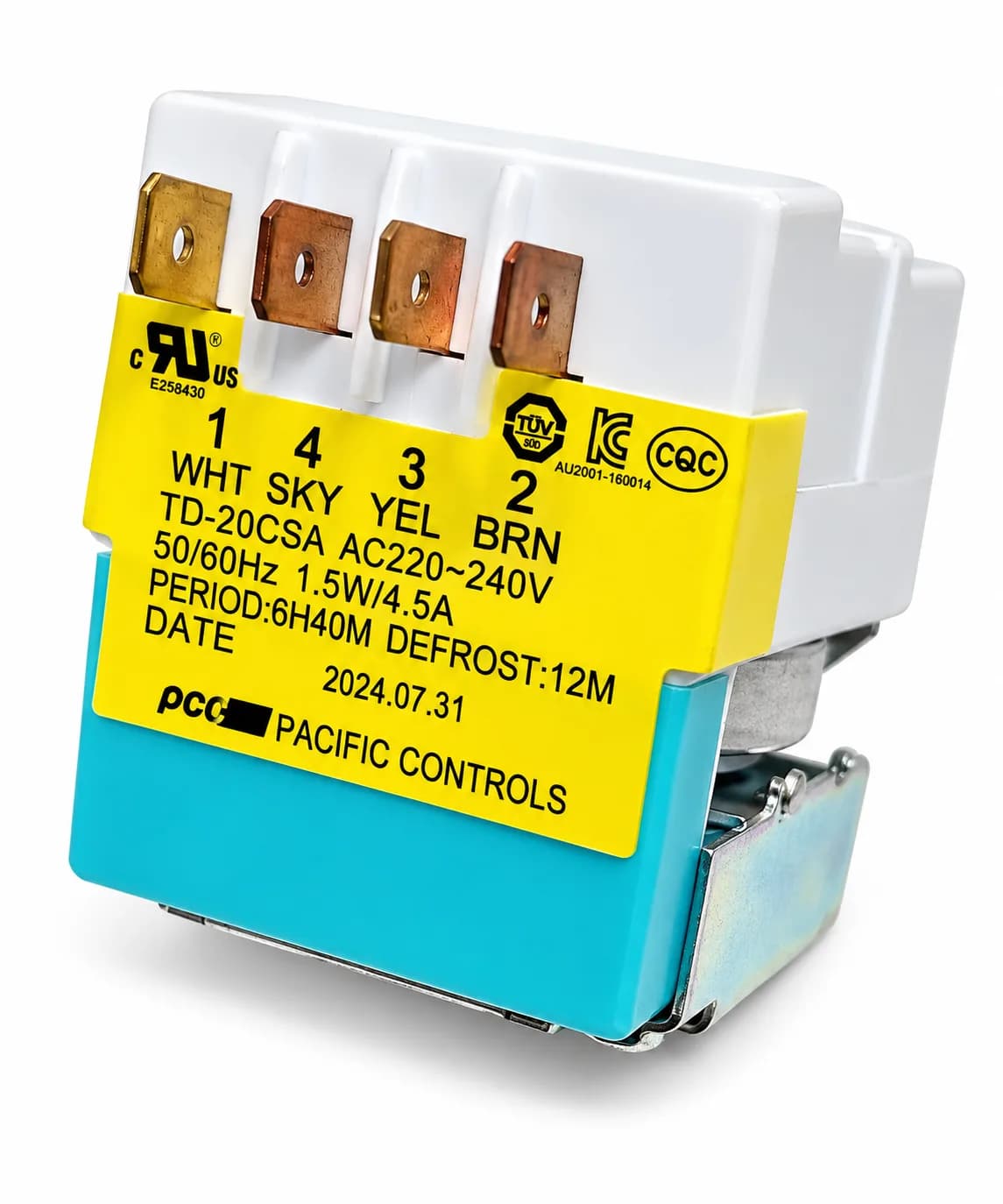

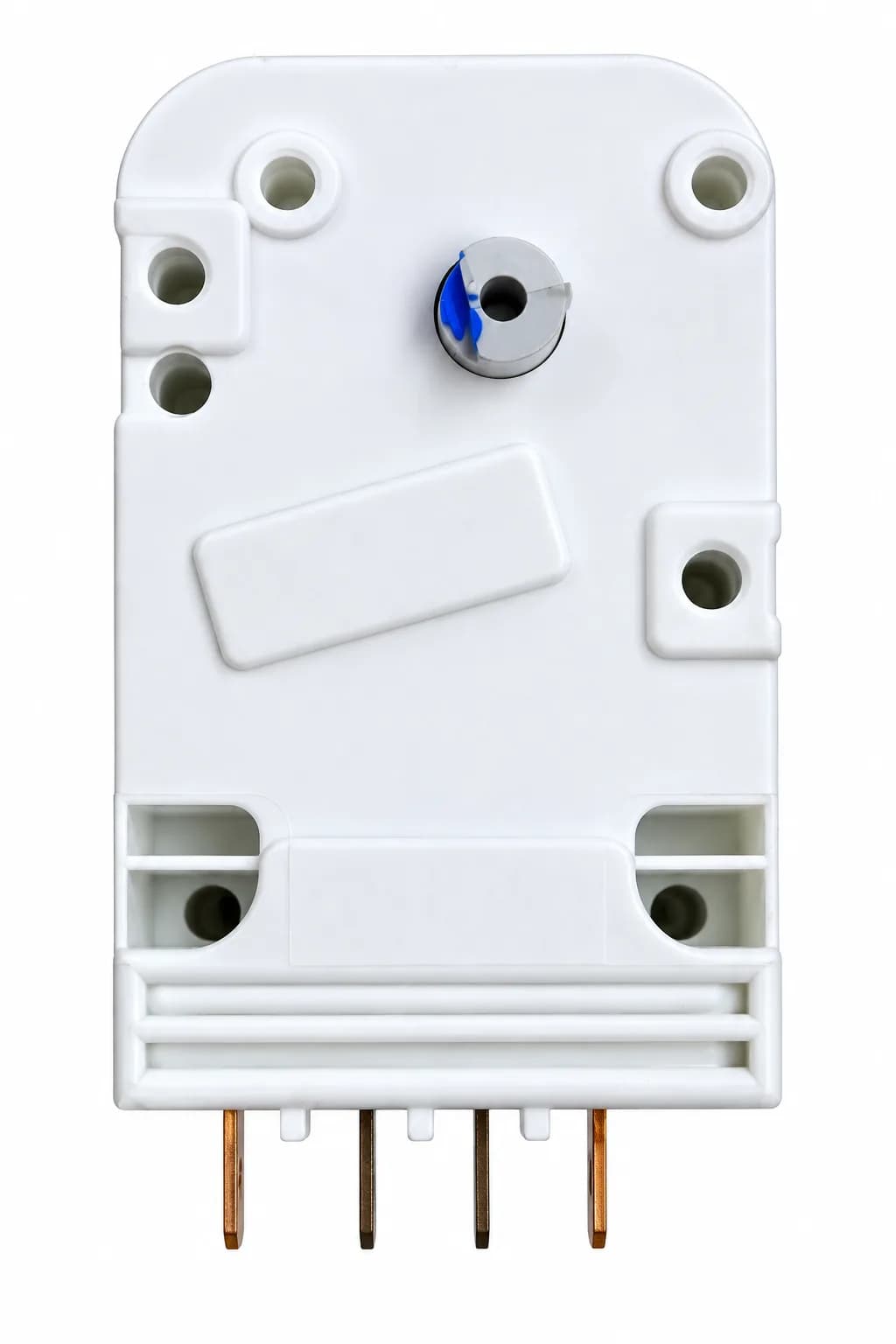

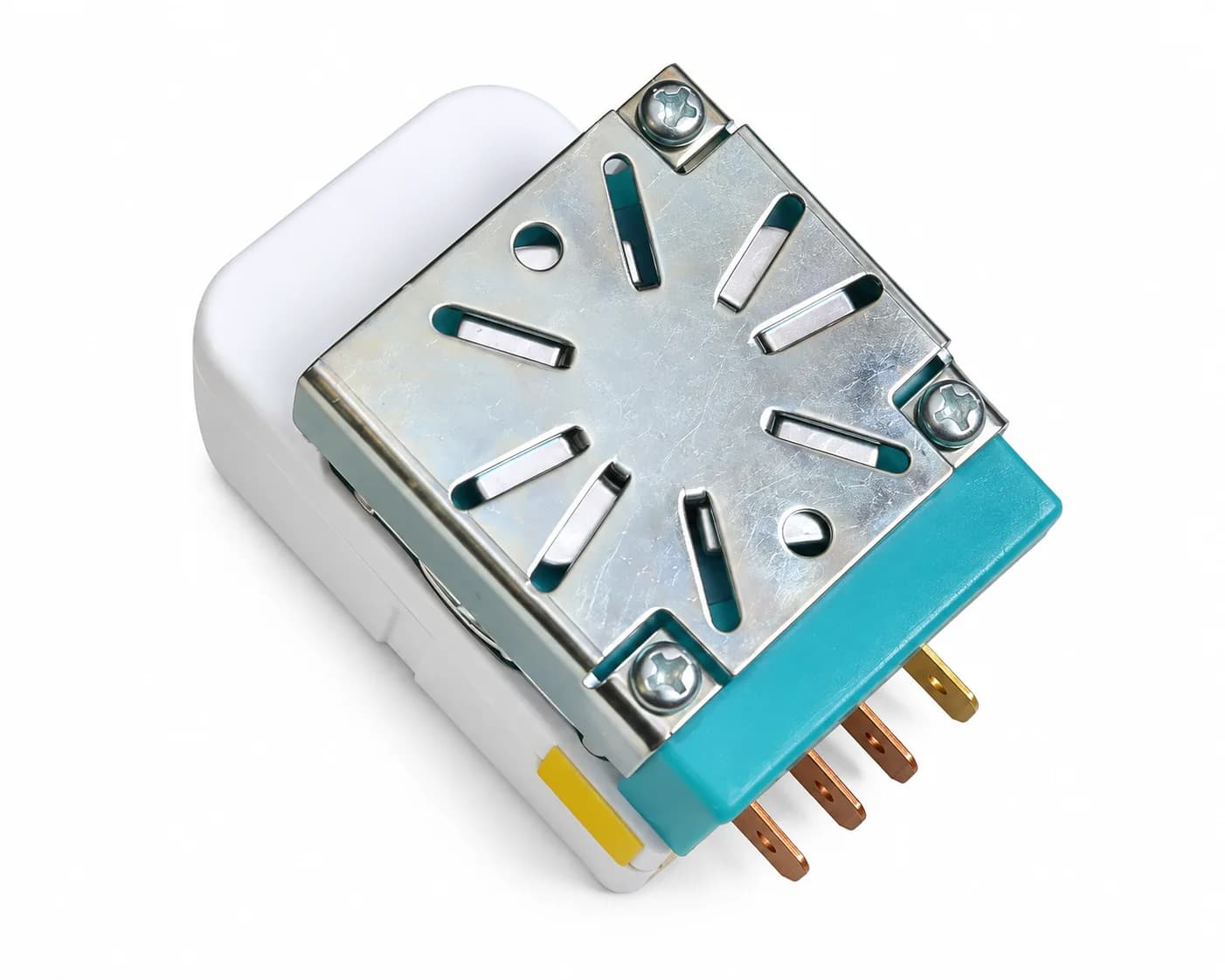

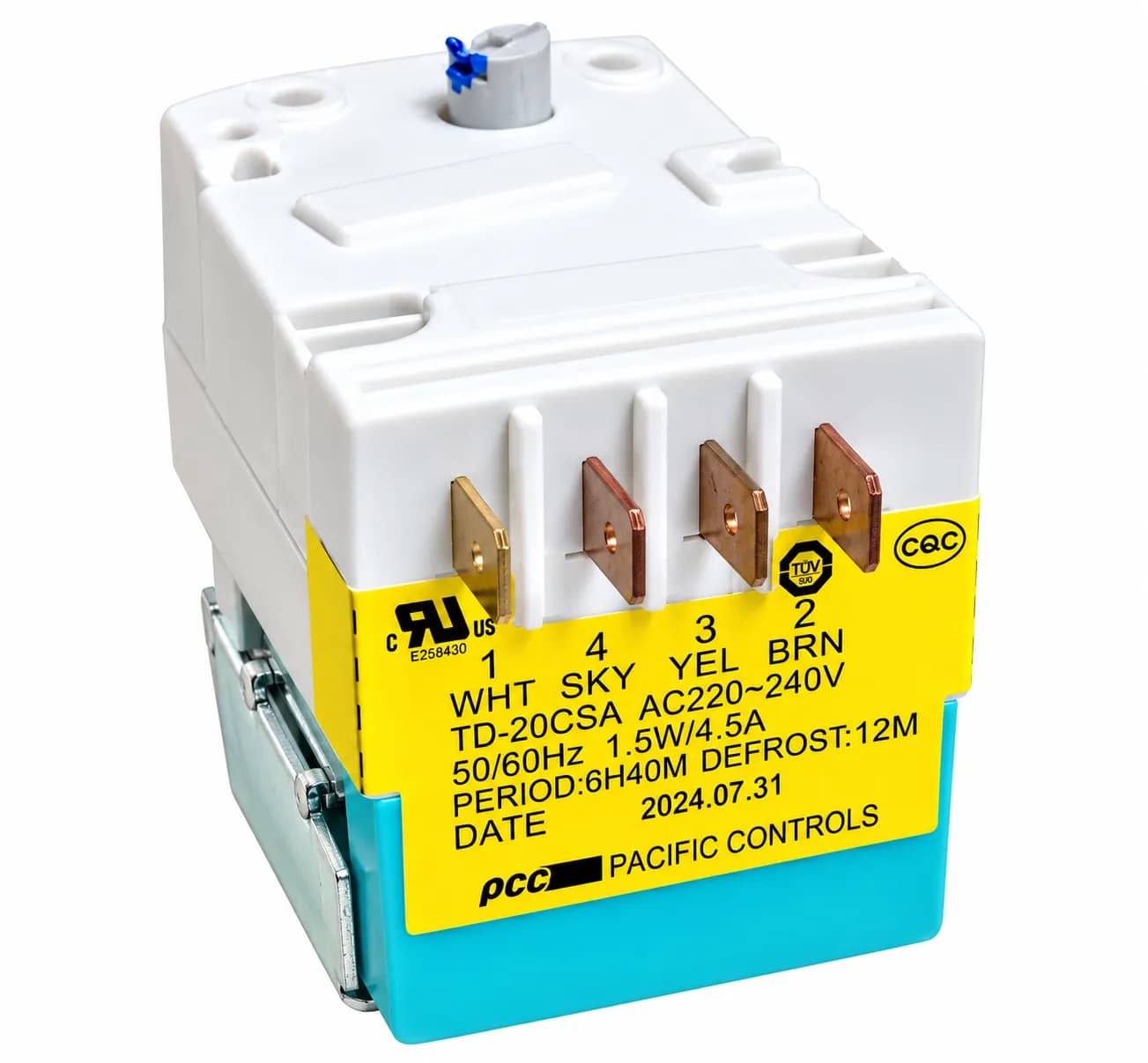

Refrigerator Defrost Timer Suitable for Samsung Refrigerators Heavy Duty Defrost Timer 6 Hours 40 Minutes Cycle & 12 Minutes Defrost 1 Year Warranty

Important: Refrigerator electrical components should preferably be installed by a qualified refrigerator technician. Disconnect the refrigerator from the power supply before starting installation. Switch OFF the Power Unplug the refrigerator from the electrical socket and ensure there is no power supply. Locate the Existing Defrost Timer Remove the required cover/panel and locate the existing defrost timer. Take a clear photograph of the existing wiring before removing it. Check Compatibility Confirm that the replacement timer is TD-20CSA, AC 220–240V, 50/60Hz and that the terminal/pin arrangement matches the original timer. Remove the Old Timer Carefully disconnect the wires/terminals from the existing timer. Do not pull the wires forcefully. Install the New Timer Fit the new TD-20CSA Defrost Timer in the same position as the original timer. Connect the Wires Correctly Connect each wire to the corresponding terminal according to the original wiring arrangement and refrigerator circuit diagram. Do not interchange terminals. Secure the Timer Make sure the timer is firmly mounted and all terminals are properly secured. Restore Power & Test Reassemble the refrigerator, plug it back in and check that the refrigerator starts cooling normally and the defrost cycle operates correctly. ⚠️ Important Safety & Compatibility Note Do not install the timer based only on appearance. Verify the refrigerator model, timer model, voltage and terminal/pin configuration before installation. Incorrect wiring can damage the timer, refrigerator or electrical system. Technovate recommends installation by a qualified refrigerator technician. Damage caused by incorrect wiring, improper installation or use with an incompatible refrigerator is not covered under the warranty.
